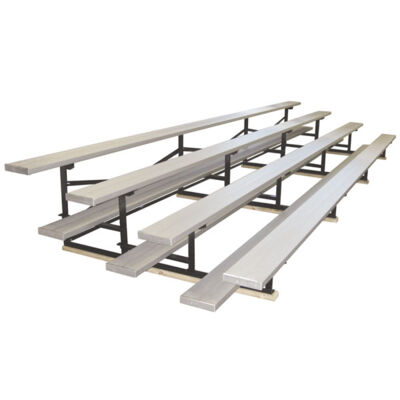

FanStand™ Outdoor Bleachers
- 9.5" wide clear anodized aluminum planks
- Seatplanks and footplanks available up to 21' in length
- Custom colored planks available upon request for an additional charge
- All welded steel understructure with black powdercoat
- 2" x 4" treated wood runners
- Mill finish footplanks
- Single and double footplanks available
- Upper seat level is below 30"
- First Team Fanstand bleachers meet guidelines set by 2002 IBC recommendations for bleachers. Check with your building inspector for local and state code requirements.
Product Documents
California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm – www.P65Warnings.ca.gov

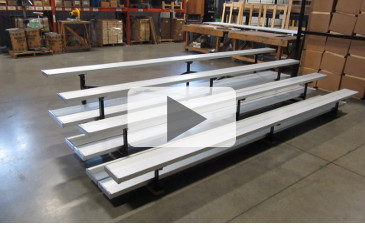

FAN4-2FP-15 Overview

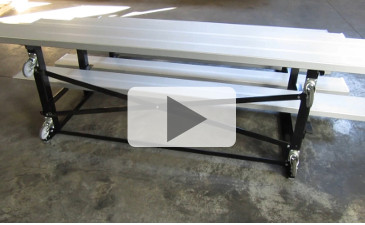

Fanstand Brace Detail

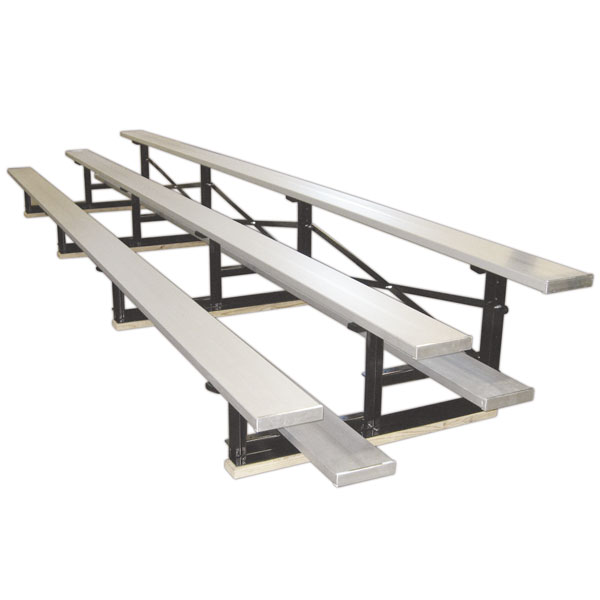

First Team's line of FanStand outdoor bleachers sets the standard for safety and affordability!
First Team's line of outdoor bleachers makes providing added spectator seating safe and affordable. All seats use 9 5/8" x 1 3/4" anodized aluminum planking. Walk planks are 9 5/8" x 1 3/4" mill finished aluminum. FanStand bleachers are available with single or double wide walk planks.
First Team's FanStand bleachers are designed so the highest seat level is below 30" above ground level, eliminating the need for safety railing. Basic framing is all welded structural angle with bolted cross bracing to maximize bleacher strength for end shift loads. Framing is spaced on six foot centers. Treated 2"x4" wood runners are bolted to the bottom of each frame to provide improved stability on soft surfaces. Rubber foot pads may be substituted upon request. Steel under structure is powder coat painted black.
Choose the FanStand bleacher that meets your seating needs. See chart for seating capacity. All FanStand bleachers are covered by First Team's Lifetime Limited Warranty!
Product Configuration Options
FAN2-1FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Single Footplank
- 9' long
- Seating Capacity: 12
- Approx. Shipping Weight: 205 lbs.
FAN2-2FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Double Footplank
- 9' Long
- Seating capacity: 12
- Approx Shipping weight: 222 lbs.
FAN2-1FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 20
- Approx. Shipping Weight: 308 lbs.
- Lifetime Limited Warranty
FAN2-2FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 20
- Approx. Shipping Weight: 334 lbs.
- Lifetime Limited Warranty
FAN2-1FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 28
- Approx. Shipping Weight: 409 lbs.
- Lifetime Limited Warranty
FAN2-2FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 2 Tier
- Double Footplank
- 21' Long
- Seating Capacity: 28
- Approx. Shipping Weight: 448 lbs.
- Lifetime Limited Warranty
FAN3-1FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Single Footplank
- 9' Long
- Seating Capacity: 18
- Approx. Shipping Weight: 268 lbs.
- Lifetime Limited Warrant
FAN3-2FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Double Footplank
- 9' Long
- Seating Capacity: 18
- Approx. Shipping Weight: 300 lbs.
- Lifetime Limited Warranty
FAN3-1FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 30
- Approx. Shipping Weight: 392 lbs.
- Lifetime Limited Warranty
FAN3-2FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 30
- Approx. Shipping Weight: 446 lbs.
- Lifetime Limited Warranty
FAN3-1FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 42
- Approx. Shipping Weight: 534 lbs.
- Lifetime Limited Warranty
FAN3-2FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 3 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 42
- Approx. Shipping Weight: 610 lbs.
- Lifetime Limited Warranty
FAN4-1FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Single Footplank
- 9' Long
- Seating Capacity: 24
- Approx. Shipping Weight: 320 lbs.
- Lifetime Limited Warranty
FAN4-2FP-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Single Footplank
- 9' Long
- Seating Capacity: 24
- Approx. Shipping Weight: 368 lbs.
- Lifetime Limited Warranty
FAN4-1FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 40
- Approx. Shipping Weight: 476 lbs.
- Lifetime Limited Warranty
FAN4-2FP-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 40
- Approx. Shipping Weight: 557 lbs.
- Lifetime Limited Warranty
FAN4-1FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 56
- Approx. Shipping Weight: 650 lbs.
- Lifetime Limited Warranty
FAN4-2FP-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- 4 Tier
- Double Footplank
- 21' Long
- Seating Capacity: 56
- Approx. Shipping Weight: 763 lbs.
- Lifetime Limited Warranty
