Fanstand™ Indoor Tip-N-Roll Bleachers
- 9.5" wide clear anodized aluminum planks
- Seatplanks and footplanks available up to 21' in length
- Custom colored planks available upon request for an additional charge
- Units roll easily on non-marking casters
- Strong powdercoated steel understructure
- Mill finish footplanks
- Single and double footplanks available
- Upper seat level is below 30"
- First Team Tip-N-Roll bleachers meet guidelines set by 2002 IBC recommendations for bleachers. Check with your building inspector for local and state code requirements.
Product Documents
Customization Options
Available Colors
California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm – www.P65Warnings.ca.gov

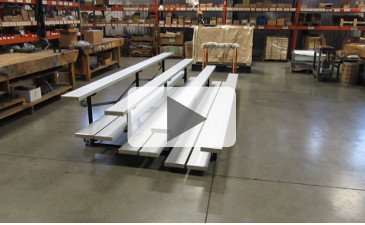

FAN-1FP-TNR-9 Overview
FAN-2FP-TNR-15 Overview

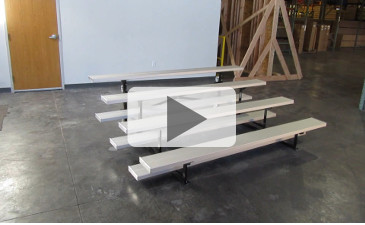

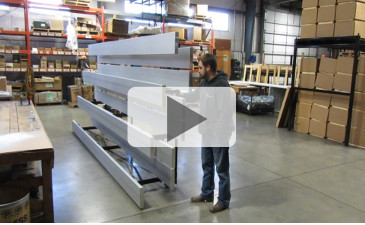

Fanstand TNR Mobility

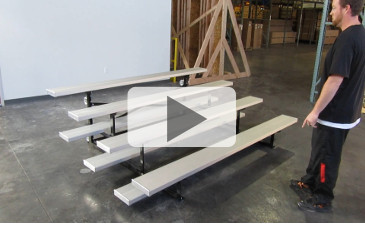

Fanstand Tip-N-Roll Procedure

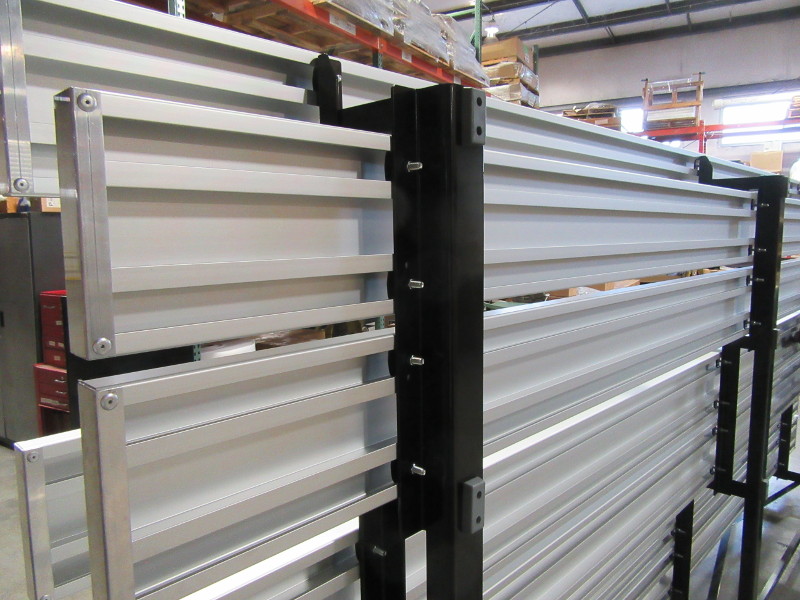

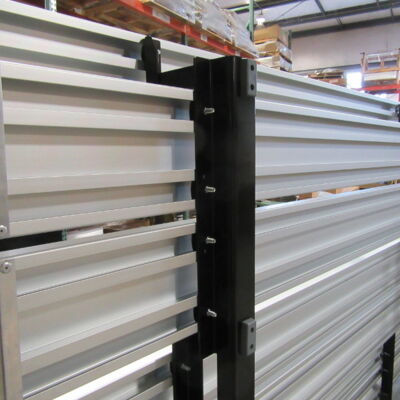

Fanstand Brace Detail

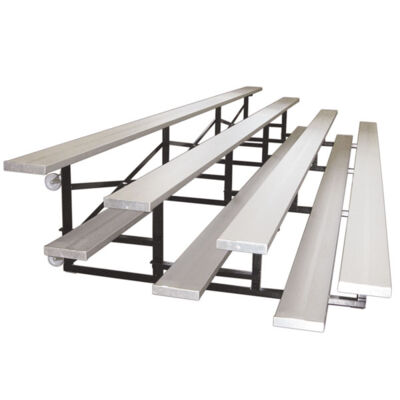

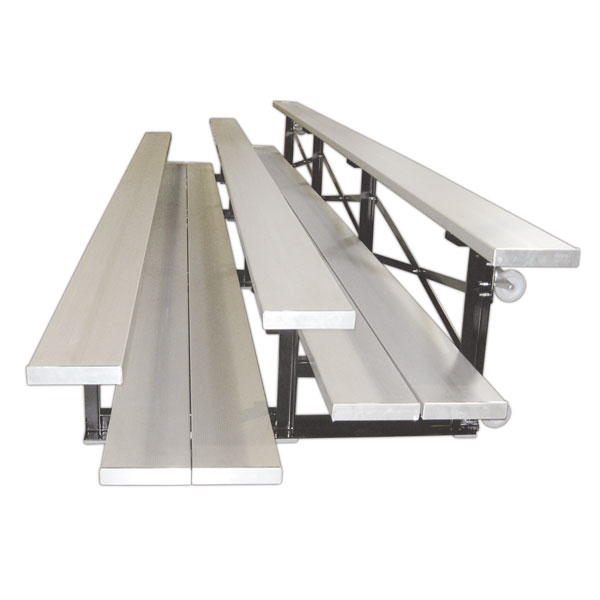

Give your gym seating the versatility you need with First Team's new line of FanStand indoor tip-n-roll bleachers.

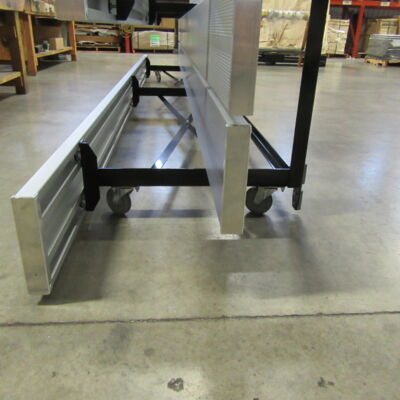

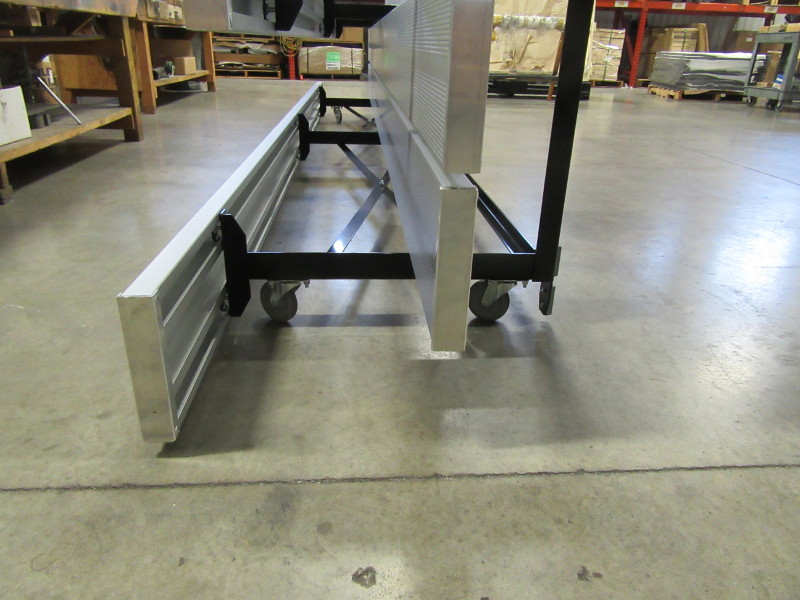

First Team's line of indoor tip-n-roll bleachers make providing added spectator seating a breeze. All seats use 9 5/8" x 1 3/4" anodized aluminum planking. Walk planks are 9 5/8" x 1 3/4" mill finished aluminum. FanStand bleachers are available with single or double wide walk planks. 4" tip n roll wheels are secured to back seat support to make bleachers portable. Simply tilt bleacher backwards onto wheels to roll.
First Team's FanStand bleachers are designed so the highest seat level is below 30" above ground level, eliminating the need for safety railing. Basic framing is all welded structural angle with bolted cross bracing to maximize bleacher strength for end shift loads. Framing is spaced on six foot centers. 2 1/2" rubber floor protectors are used on the bottom of frame to protect finished floors. Steel under structure is powder coat painted black.
Choose the FanStand bleacher that meets your seating needs. See chart for seating capacity. All FanStand bleachers are covered by First Team's Lifetime Limited Warranty!
Product Configuration Options
FAN2-1FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier
- Single Footplank
- 9' long
- Seating Capacity: 12
- Approx. Shipping Weight: 210 lbs.
FAN2-2FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier

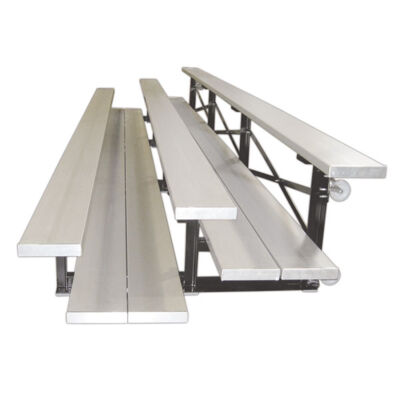

- Double Footplank
- 9' Long
- Seating capacity: 12
- Approx Shipping weight: 227 lbs.
FAN2-1FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 20
- Approx. Shipping Weight: 312 lbs.
- Lifetime Limited Warranty
FAN2-2FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 20
- Approx. Shipping Weight: 339 lbs.
- Lifetime Limited Warranty
FAN2-1FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 28
- Approx. Shipping Weight: 414 lbs.
- Lifetime Limited Warranty
FAN2-2FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 2 Tier
- Double Footplank
- 21' Long
- Seating Capacity: 28
- Approx. Shipping Weight: 452 lbs.
- Lifetime Limited Warranty
FAN3-1FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Single Footplank
- 9' Long
- Seating Capacity: 18
- Approx. Shipping Weight: 272 lbs.
- Lifetime Limited Warranty
FAN3-2FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Double Footplank
- 9' Long
- Seating Capacity: 18
- Approx. Shipping Weight: 305 lbs.
- Lifetime Limited Warranty
FAN3-1FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 30
- Approx. Shipping Weight: 397 lbs.
- Lifetime Limited Warranty
FAN3-2FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 30
- Approx. Shipping Weight: 451 lbs.
- Lifetime Limited Warranty
FAN3-1FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 42
- Approx. Shipping Weight: 539 lbs.
- Lifetime Limited Warranty
FAN3-2FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 3 Tier
- Double Footplank
- 21' Long
- Seating Capacity: 42
- Approx. Shipping Weight: 615 lbs.
- Lifetime Limited Warranty
FAN4-1FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Single Footplank
- 9' Long
- Seating Capacity: 24
- Approx. Shipping Weight: 325 lbs.
- Lifetime Limited Warranty
FAN4-2FP-TNR-9
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Double Footplank
- 9' Long
- Seating Capacity: 24
- Approx. Shipping Weight: 373 lbs.
- Lifetime Limited Warranty
FAN4-1FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Single Footplank
- 15' Long
- Seating Capacity: 40
- Approx. Shipping Weight: 481 lbs.
- Lifetime Limited Warranty
FAN4-2FP-TNR-15
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Double Footplank
- 15' Long
- Seating Capacity: 40
- Approx. Shipping Weight: 481 lbs.
- Lifetime Limited Warranty
FAN4-1FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Single Footplank
- 21' Long
- Seating Capacity: 56
- Approx. Shipping Weight: 655 lbs.
- Lifetime Limited Warranty
FAN4-2FP-TNR-21
Includes:
- Clear Anodized Aluminum Plank
- Powdercoated Steel Support Structure
- Non-marking Transport Casters
- 4 Tier
- Double Footplank
- 21' Long
- Seating Capacity: 56
- Approx. Shipping Weight: 768 lbs.
- Lifetime Limited Warranty
